Custom compliance
Each frame is custom-tuned based on its size. Individual composite lay-up schedules are created to optimize vertical compliance to produce a smoother ride quality on XC terrain.
Highlights

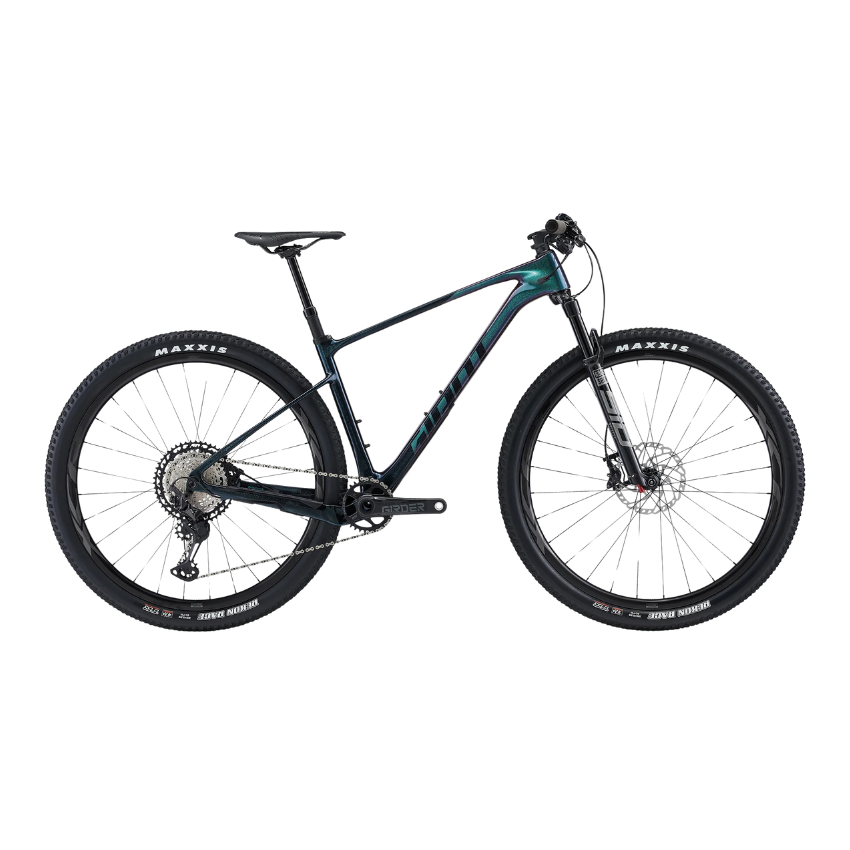

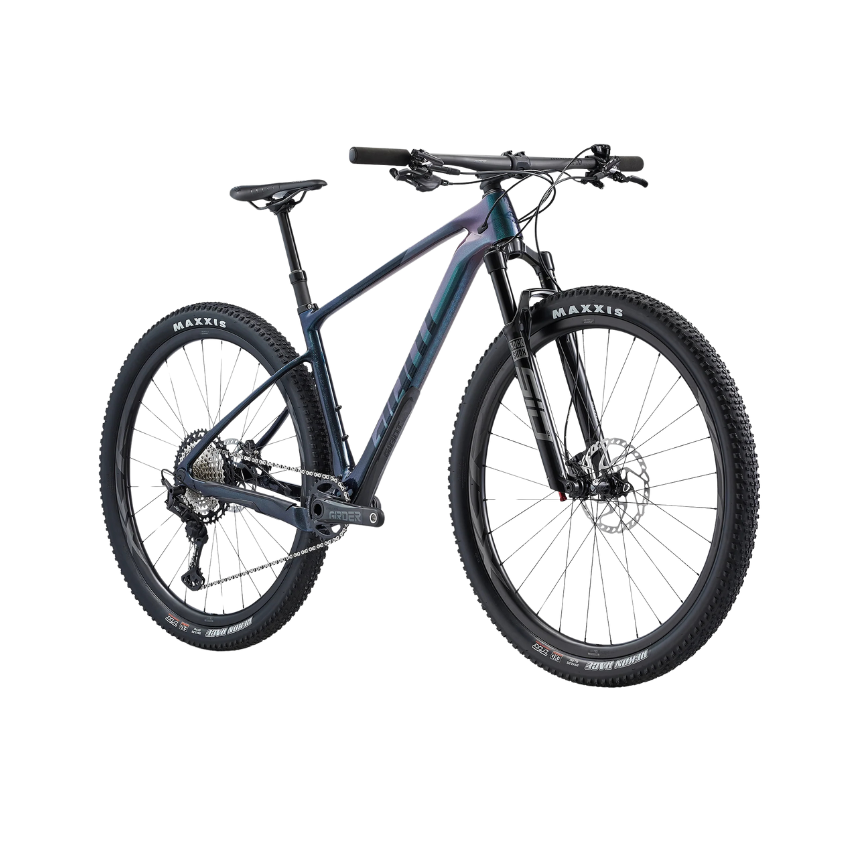

With its large-diameter 29-inch wheels and lightweight Advanced-grade composite frame, this responsive hardtail flies on XC terrain. The frameset is engineered for a 100mm fork, handcrafted with a specific composite layup schedule according to frame size. This creates an optimal stiffness-to-weight ratio with just the right amount of vertical compliance. It features wider Boost hub spacing, which improves wheel stiffness and adds clearance to run larger tires, plus a host of other features that let you dial in its performance on XC terrain.
COLORS Chameleon Galaxy
FRAME Advanced SL-Grade Composite, 12x148mm thru-axle
FORK RockShox SID SL Select, 100mm, Charger 2 RL damper, 44mm offset, 15x110 Maxle Stealth, remote lockout
SHOCK N/A
COMPONENTS
HANDLEBAR Giant Contact SLR XC Flat, 760x35mm
GRIPS Giant XC Pro S:32mm, M:32mm, L:34mm, XL:34mm
STEM Giant Contact SL XC 35 S:60mm, M:70mm, L:80mm, XL:90mm
SEATPOST Giant Contact Switch dropper, Shimano remote S: 125mm travel / 30.9 x 395mm M: 125mm travel / 30.9 x 395mm L: 125mm travel / 30.9 x 395mm XL: 125mm travel / 30.9 x 395mm
SADDLE Fi'zi:k Antares R5 with K:ium rails
PEDALS N/A
DRIVETRAIN
SHIFTERS Shimano Deore XT M8100, 1x12 FRONT DERAILLEUR N/A
REAR DERAILLEUR Shimano Deore XT M8100
BRAKES Shimano Deore XT BR-M8100, hydraulic, Shimano RT-66 rotors [F]180mm, [R]160mm B
RAKE LEVERS Shimano Deore XT BL-M8100
CASSETTE Shimano Deore XT M8100, 10x51 CHAIN KMC X-12
CRANKSET Praxis Girder Carbon Boost, 32t S:170mm, M:175mm, L:175mm, XL:175mm
BOTTOM BRACKET Shimano, press fit
WHEELS RIMS Giant XCR 1 29 Carbon WheelSystem
HUBS Giant XCR 1 29 Carbon WheelSystem
SPOKES Giant XCR 1 29 Carbon WheelSystem
TIRES Maxxis Rekon Race 29x2.25, foldable, TLR, EXO, tubeless
EXTRAS tubeless prepared, 2.25" max tire size, 38t max chainring size
Weight - The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
